Shower Parts Explained: Your Guide to Common Components

Understanding the common parts of a shower system is key whether you're fixing a leak, upgrading your bathroom, or just curious. Most showers contain a valve, a showerhead, a handle, and internal cartridges or diverters that all work together to deliver water.

Key takeaways:

• The shower valve mixes hot and cold water and is the system's central control.
• Shower cartridges are specific to brand and model; misidentifying them is a common mistake.
• Diverters direct water flow, often between a tub spout and showerhead.
• Showerheads vary widely in spray patterns and flow rates, typically between 1.8 and 2.5 gallons per minute (GPM).

What are the essential components of a shower system?

The essential components of a standard shower system are the main shower valve, the showerhead, the handle, and the internal cartridge or diverter. Each plays a specific role in controlling water temperature, flow, and direction. While there are many variations, these four parts form the core of almost every setup.

What does the shower valve do?

The shower valve is the heart of your shower system, controlling both the water temperature and volume. It's usually hidden behind the wall, with only the handle and trim visible. This valve takes hot and cold water lines and mixes them to your desired temperature before sending the water to the showerhead or tub spout. Modern valves often include anti-scald features, like pressure-balancing or thermostatic technology, to prevent sudden temperature spikes. For example, a pressure-balancing valve can react to a toilet flushing by quickly adjusting the hot and cold water mix to keep your shower temperature stable.

What is a shower cartridge and why is it important?

A shower cartridge is an internal component within the shower valve that regulates the flow and temperature of water. It's often a cylindrical piece made of plastic, brass, or ceramic, containing seals and moving parts. When you turn the shower handle, the cartridge rotates or moves to open and close ports, allowing more or less hot or cold water to mix. These cartridges are crucial because they're the primary wear item in a shower valve. A leaking shower, difficulty adjusting temperature, or low water pressure often points to a failing cartridge. They are brand and model specific; a Moen cartridge won't fit a Delta valve, for instance.

How do showerheads differ?

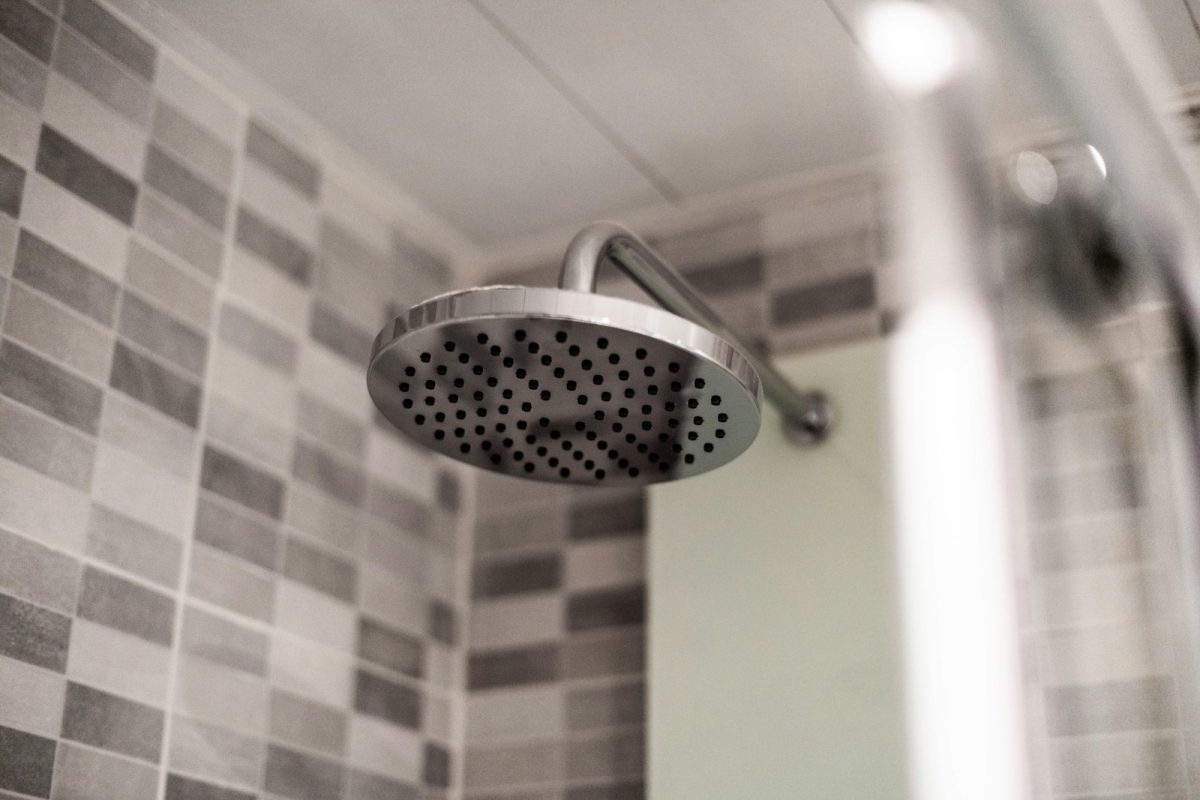

Showerheads are the visible components that spray water and come in a vast array of styles, sizes, and functions. The main differences lie in their spray patterns, flow rates, and mounting types. Common spray patterns include rain, massage, mist, and full spray. Flow rates are measured in gallons per minute (GPM), with most modern showerheads having a maximum flow rate of 2.5 GPM, though many are now 1.8 GPM or 2.0 GPM to conserve water.

Here's a quick look at common types:

What is a shower diverter and how does it work?

A shower diverter is a mechanism that redirects water flow from one outlet to another. Its most common use is to switch water from a tub spout to a showerhead. Diverters can be found in several locations:

• Integrated into the main valve: This is common in single-handle tub/shower setups, where turning or pulling the main handle also activates the diverter.
• On the tub spout: Many tub spouts have a small pull-up knob on top that, when engaged, diverts water to the showerhead.
• As a separate control: In more complex shower systems with multiple spray options (like body jets or a rain head), you might have a dedicated diverter handle on the wall.

A common issue with diverters is when they don't fully close, leading to water dripping from the tub spout even when the shower is on. This usually means a worn seal or a faulty diverter mechanism.

What other parts might my shower have?

Beyond the core components, several other parts might be found in your shower system. These include:

• Shower Arm: The pipe that extends from the wall to connect to the showerhead. It's typically a standard 1/2-inch NPT pipe thread.
• Flange/Escutcheon: The decorative plate that covers the hole in the wall around the shower arm or valve handle, giving a finished look.
• Body Jets: Small, adjustable spray nozzles installed in the shower wall, providing targeted water streams for a spa-like experience. These require additional plumbing and a separate diverter or valve.
• Thermostatic Mixing Valve (TMV): A specialized valve that blends hot and cold water to a precise, preset temperature, providing superior comfort and safety compared to a basic pressure-balancing valve. They often cost more, starting around $150 for basic models.
• Temperature Limit Stop: A small plastic ring or clip inside the shower handle or cartridge that prevents the handle from turning too far into the hot water range, acting as an anti-scald safety feature. You can usually adjust this yourself.

How do I identify my shower parts for replacement?

Identifying specific shower parts for replacement, especially cartridges, is often the trickiest part. The best approach is to:

1. Identify the manufacturer: Look for a brand name or logo on the shower handle, trim plate, or even on the showerhead itself. Common brands include Moen, Delta, Kohler, American Standard, and Pfister.
2. Find the model number: This can be harder. Sometimes it's on the back of the trim plate, in the original installation manual, or on the valve body itself (which means opening up the wall).
3. Take photos: Snap clear pictures of the existing part from multiple angles, especially if you remove it.
4. Measure dimensions: For cartridges, measure the length, diameter, and note the number and arrangement of holes or ports.
5. Consult online resources: Most manufacturers have excellent online parts diagrams and identification guides. Websites like SupplyHouse.com or FaucetParts.com also have extensive databases.

Honestly, if you can't find a model number, bringing the old part to a plumbing supply store is often the easiest way to match it. A common cartridge replacement can cost anywhere from $20 to $100, depending on the brand and complexity.

When should I call a professional plumber?

While many shower part replacements, like a showerhead or a cartridge, can be a DIY job, some situations warrant calling a professional. If you're dealing with:

• Leaking behind the wall: This could indicate a problem with the main valve body or pipes, requiring wall access.
• No water or very low pressure: This might be a more complex plumbing issue, not just a simple part replacement.
• Difficulty identifying parts: If you've tried all the identification methods and are still unsure, a plumber can quickly diagnose and source the correct components.
• Replacing the entire shower valve: This involves soldering or PEX connections and ensuring proper installation for long-term reliability, which is definitely a job for someone experienced.
• Any situation involving significant water damage: Stop using the shower immediately and call a professional to assess the damage and fix the root cause.

A plumber's service call typically starts around $100-$200, but can save you a lot of headache and potential water damage in the long run.
