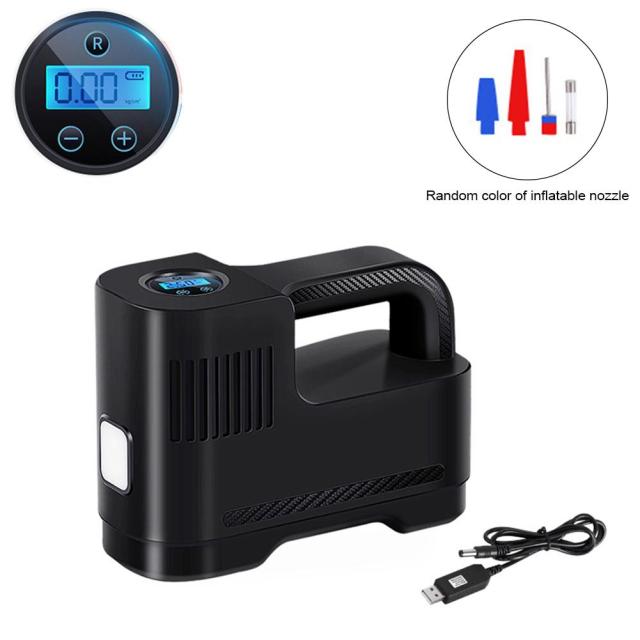

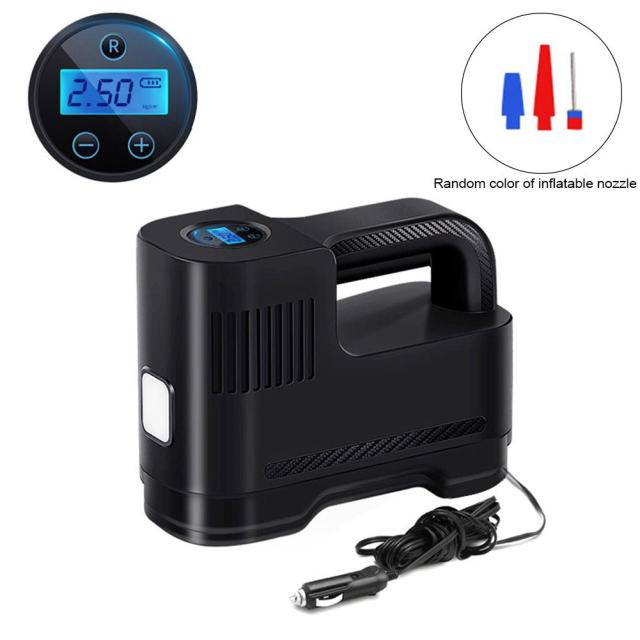

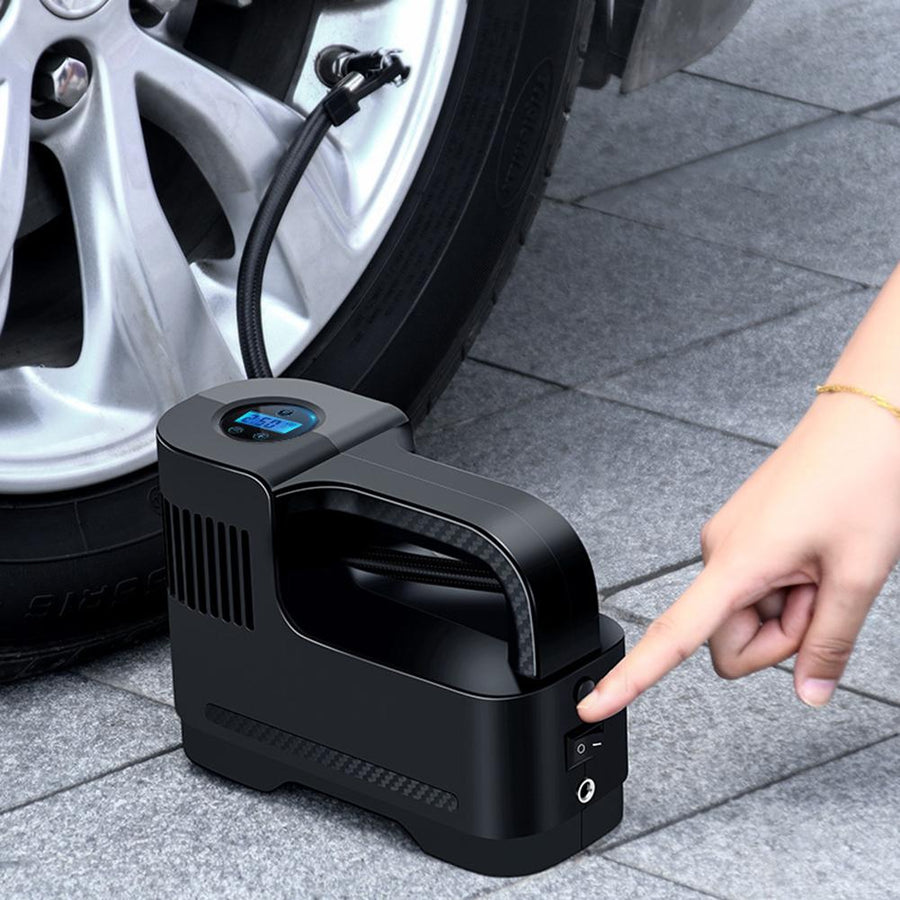

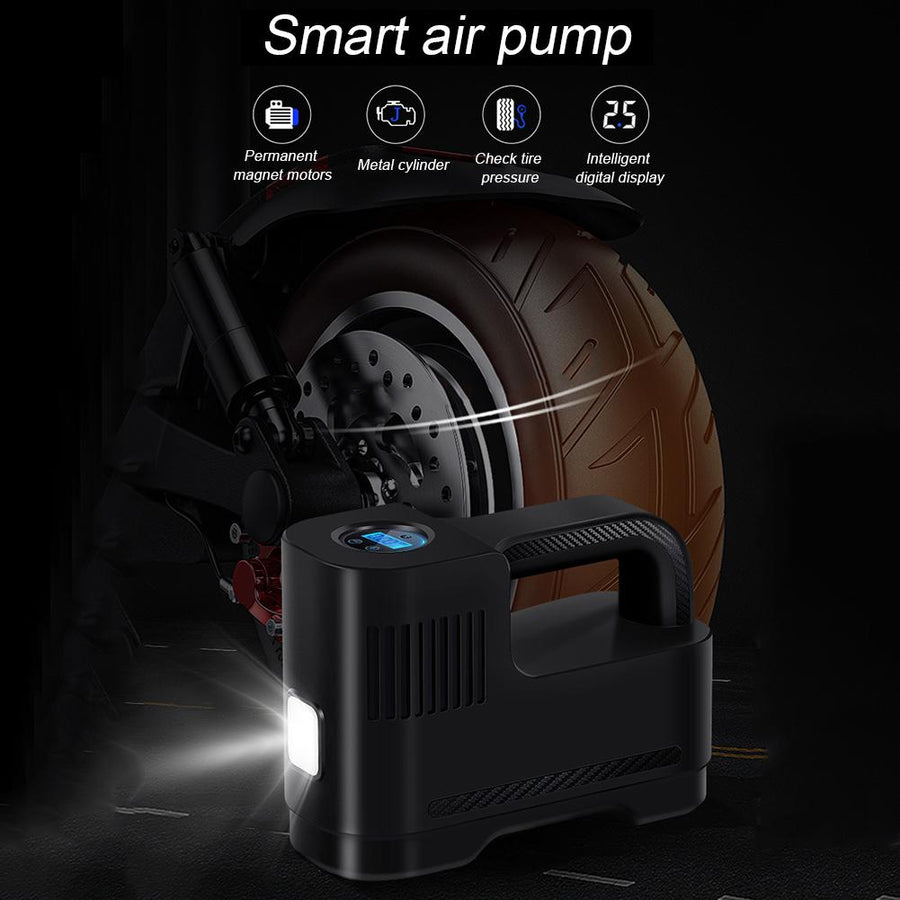

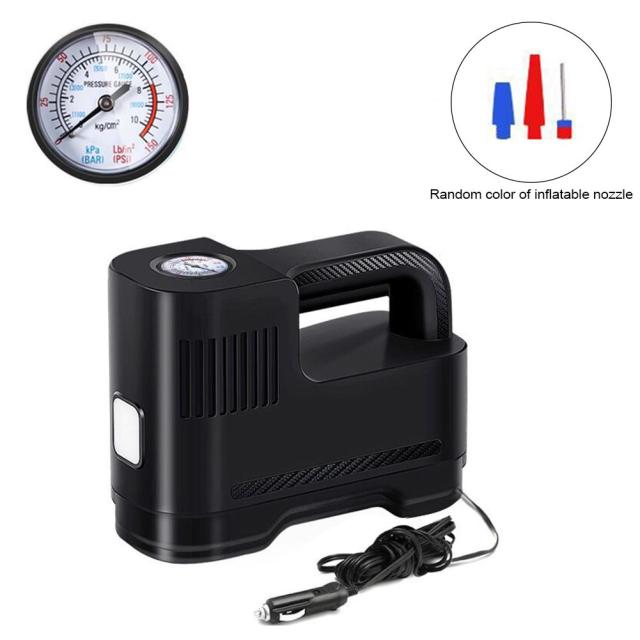

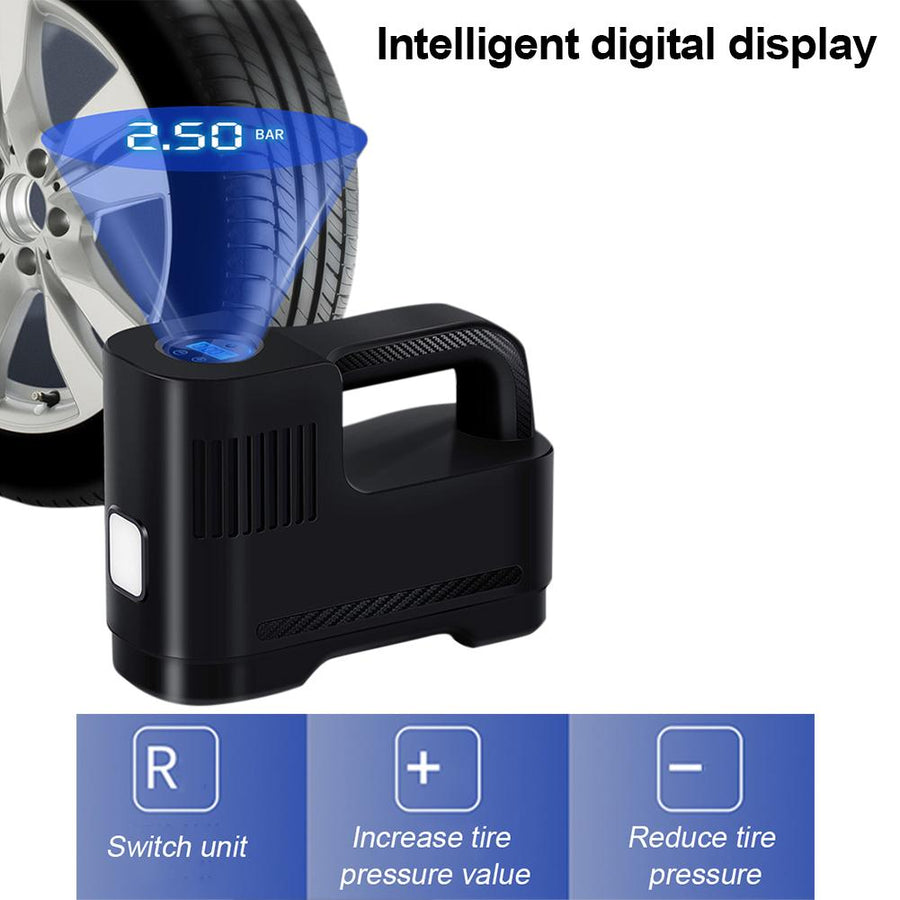

Car Digital LED Air Compressor Pump

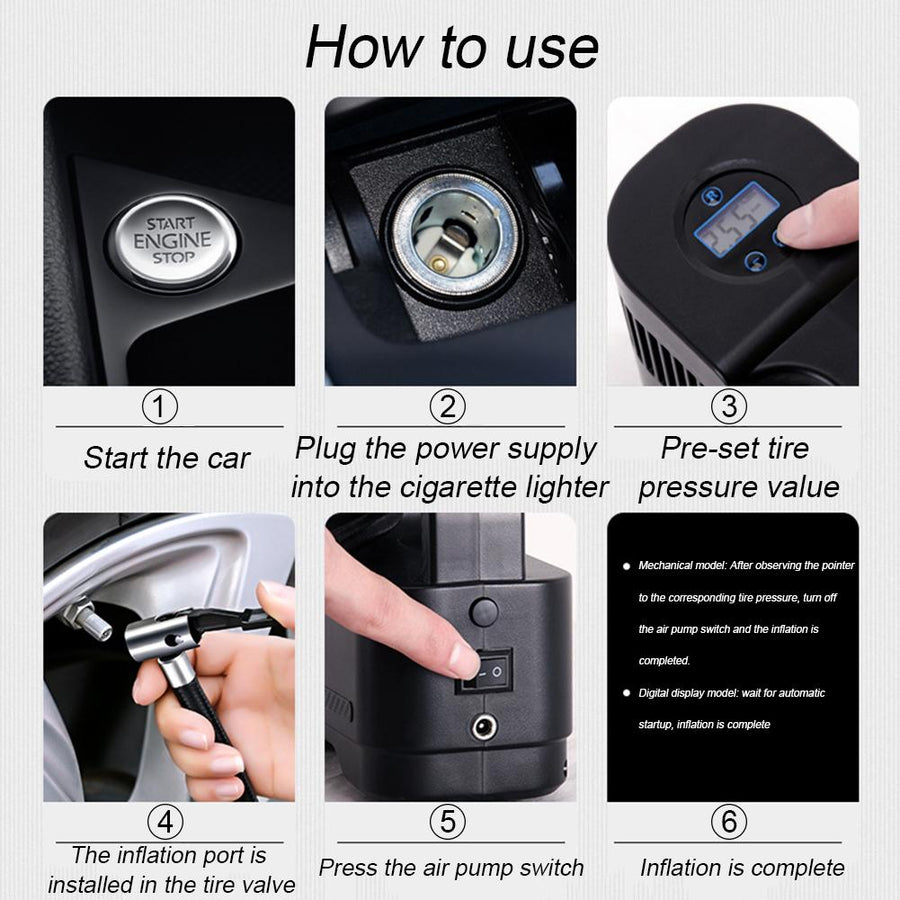

Instructions for use:
1. Insert the air nozzle on the rubber tube head directly on the tire valve. When you hear the sound of air leaking from the tire, it means that the air has circulated. Continue to tighten the air nozzle. At this time, the air will no longer escape.
2. Insert into the DC12V cigarette lighter.
3. When inflating, the indicator of the instrument rises with the saturation of the tire. When the indicator reaches the proper tire pressure (general car tire pressure is 223kpa=35PSI), remove the plug and the air nozzle, and the work is completed.
4. Please use the professional ball needle and plastic nozzle equipped with the machine to connect with the gas nozzle to inflate the ball and other gas demand equipment.

Notes:
1. It cannot be used to inflate tires of large and overweight vehicles, such as trucks, large trucks, and container trucks;
2. Please use the car engine to increase the power when using it, and do not consume the car battery power;
3. This machine is limited to use DC (DC12V) power supply, and cannot use household high-voltage AC (AC220V) power supply;
4. When inflating, please stop working for 10 minutes after 10 minutes of continuous work for cooling to prevent damage to the air pump and accessories and extend the life of the motor. When the rubber boat is inflated, it can work continuously for 30 minutes;
5. When the normal tire is inflated, the normal tire pressure of 30PSI can be reached in about 3-5 minutes, and the larger tire will be a little longer; if the pointer of the meter rises quickly to 50-100PSI at the beginning of inflation, it means that the air is blocked The air does not enter the tires. At this time, unplug the air nozzle connector and re-operate, otherwise, the motor and instrument will be easily damaged.
6. Don't leave the body when using, pay attention to the tire pressure at any time, do not add to air;
7. After the machine is used, the air nozzle wrench must be straightened to avoid the fatigue of the rubber elasticity inside;
8. The air pump plug is equipped with a fuse. If the air pump does not start, please open the plug to check and replace it (fuse is 10A);
9. The machine should avoid moisture, heavy falls, and intrusion of sand and mud, and avoid playing with children to avoid damage;
10. The pressure required for each type of tire is different, please refer to the label on the side of the car tire, or ask the car manufacturer.

Specification:
Name: Car Air Pump
Material: ABS
Working voltage: 12V
Lighting: LED lighting
Rated power: 120W
Inflation flow: 25L/min
Cigarette lighter power cord length: about 330cm/129.92inch (wired version)
USB charging cable length: 1m (wireless version)
Trachea length: about 50cm/19.69inch
Power supply mode: cigarette lighter power supply (wired model)
Continuous working time: about 20 minutes Normal scene
Size: about 19*14*8cm/7.48*5.51*3.54 inch
MAX air pressure: 150psi


Packing List: 1 x Car Digital LED Air Compressor Pump
